HPE 3PAR Monitoring

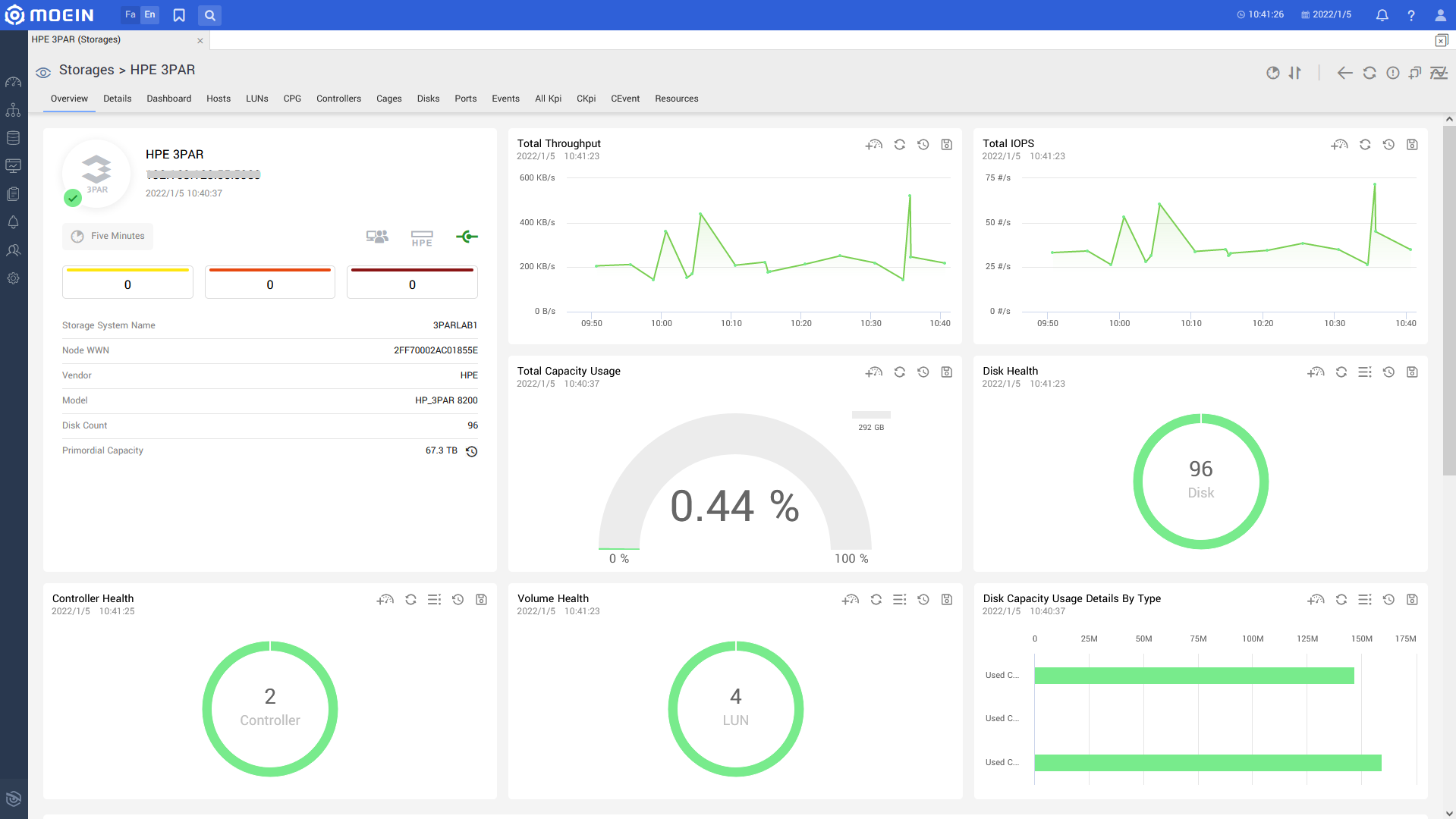

HPE 3PAR storage is the most widely used storage at the enterprise level. Moein is currently capable of monitoring the 7000 and 8000 series using standard interfaces. The performance indicators monitored by the Moein are:

Hp E3 Par.overview.en

General information:

  1. Vendor
  2. Model
  3. Serial Number
  4. Firmware Version
  5. Drive Count
  6. Description
  7. Storage System Name
  8. IPV4 Address
  9. Node WWN

Storage Array KPIs:

  1. Total IOs
  2. Total Data Transferred
  3. Total Data Written
  4. Total IO Elapsed Time
  5. Read IOs Count
  6. Write IO To Cache
  7. Total Read IOs Elapsed Time
  8. Total Data Reads
  9. Write IOs Count
  10. Total Write IOs Elapsed Time
  11. Total IOPS
  12. Total Throughput
  13. Write Rate
  14. Read Rate
  15. Average Response Time
  16. Average Read Response Time
  17. Average IO Read Rate
  18. Average IO Write Rate
  19. Average Write Response Time
  20. Read Hit Ratio
  21. Write Hit Ratio
  22. Usable Capacity
  23. Remaining Capacity
  24. Used Capacity
  25. Capacity Usage
  26. Total usable Capacity
  27. Total Remaining Capacity
  28. Total Used Capacity
  29. Total Capacity Usage

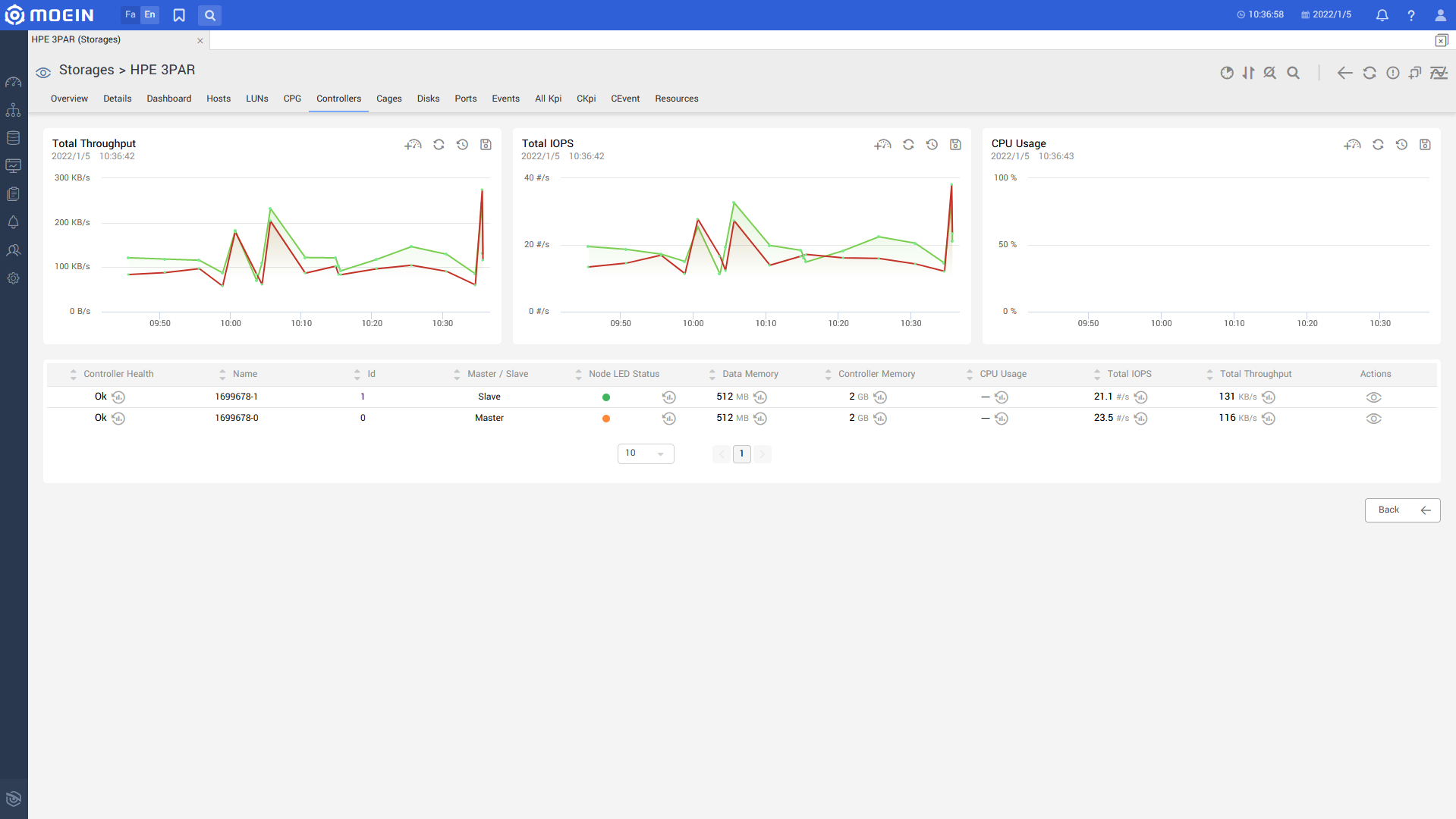

controllers General information:

  1. Controller Name
  2. ID
  3. Controller UUID
  4. Operation Status
  5. Health State
  6. Master Status
  7. Online Status
  8. Node LED Status
  9. Software Version
  10. Data Memory
  11. Controller Memory

Hp E3 Par.controllers.en

Controllers KPIs:

  1. Total IOs
  2. Total Data Transferred
  3. Total Data Written
  4. Total IO Elapsed Time
  5. Read IOs Count
  6. Read IOs From Cache
  7. Write IOs To Cache
  8. Total Read IOs Elapsed Time
  9. Total Data Reads
  10. Write IOs Count
  11. Total Write IOs Elapsed Time
  12. Total IOPS
  13. Total Throughput
  14. Write Rate
  15. Read Rate
  16. Average Response Time
  17. Average Read Response Time
  18. Average IO Read Rate
  19. Average IO Write Rate
  20. Average Write Response Time
  21. Read Hit Ratio
  22. Write Hit Ratio
  23. Read IOs Miss Cache
  24. Write IOs Miss Cache
  25. Lock Read Blocks
  26. Lock Write Blocks
  27. Free Cache Pages
  28. Clean Cache Pages
  29. Total User CPU Time
  30. Total System CPU Time
  31. Total CPU Idle Time
  32. CPU Usage
  33. Read Lock Rate
  34. Write Lock Rate
  35. Free Cache Percentage

Hp E3 Par.controllers.view.kpi.en

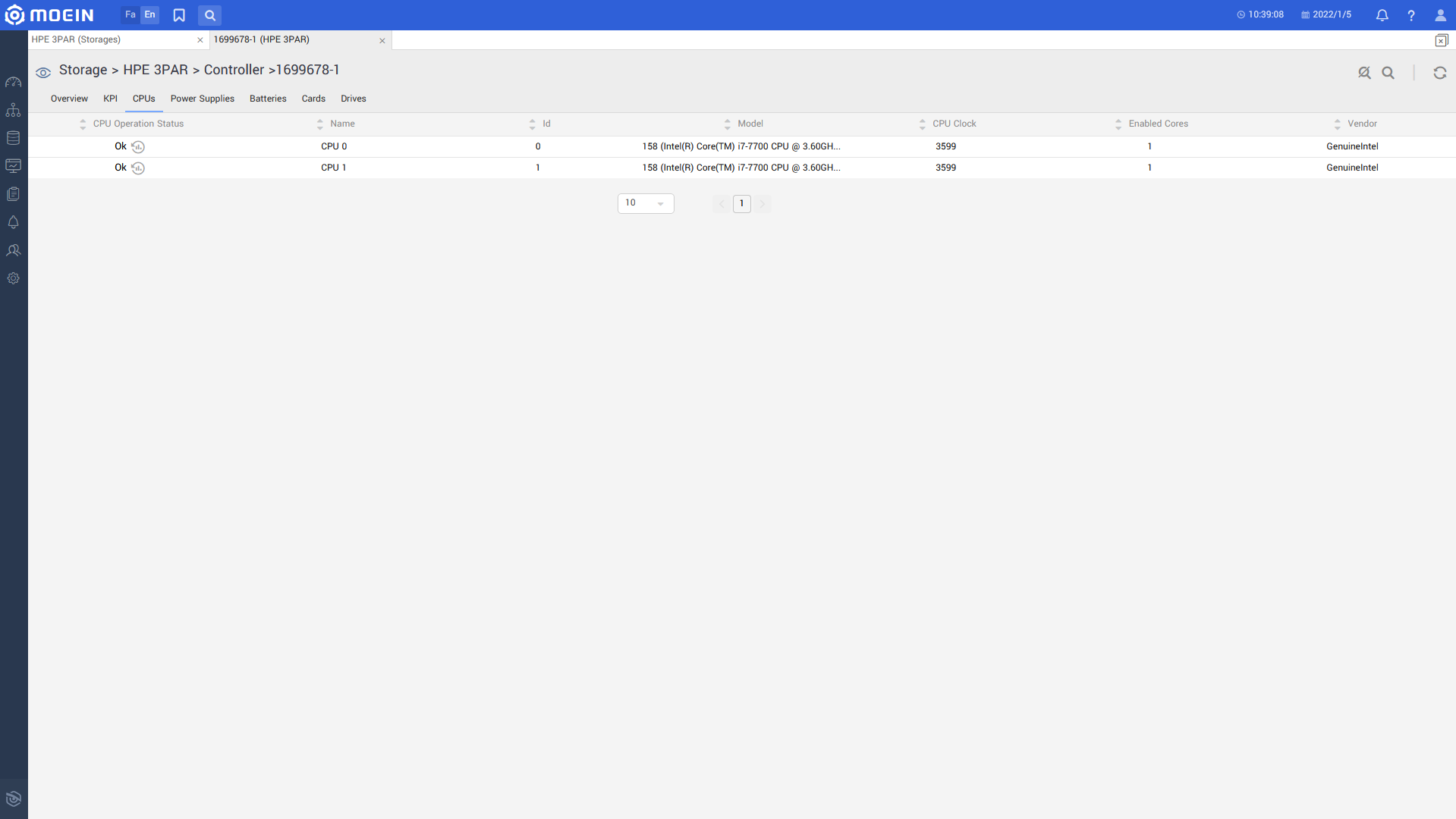

Controlers CPU KPIs:

  1. Controller ID
  2. Controller CPU ‌ID
  3. ID
  4. Vendor
  5. Operation Status
  6. Model
  7. CPU Clock
  8. Number Of Cores

Hp E3 Par.controllers.view.cpu.en

Controllers Power supply:

  1. Controller ID
  2. Power Supply Device ID
  3. ID
  4. Vendor
  5. Model
  6. Enabled State
  7. Power Operation Status
  8. Power Health
  9. AC Status
  10. DC Status
  11. Fan Status
  12. Battery Status

Controller Power Supply Battery KPIs:

  1. Controller ID
  2. Battery Device ID
  3. Power Supply ID
  4. ID
  5. Vendor
  6. Model
  7. Enabled State
  8. Battery Operation Status
  9. Battery Status
  10. Max Life Time
  11. Test In Progress
  12. Full Charge Capacity
  13. Expire Time
  14. Battery Health

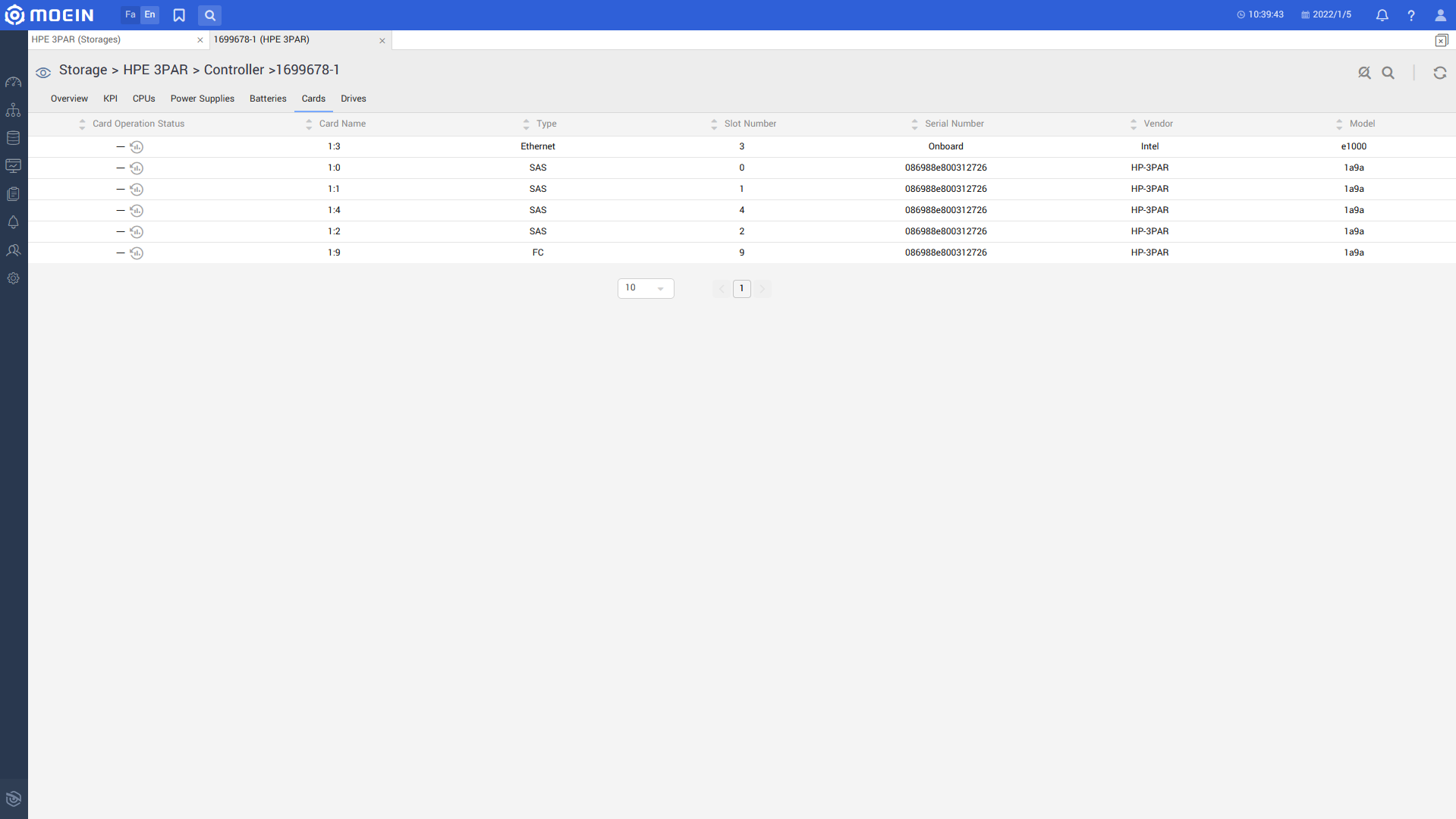

Controller Cards KPIs:

  1. Controller ID
  2. Card Name
  3. Serial Number
  4. ID
  5. Vendor
  6. Model
  7. Slot Number
  8. Type
  9. Operation Status

Hp E3 Par.controllers.view.card.en

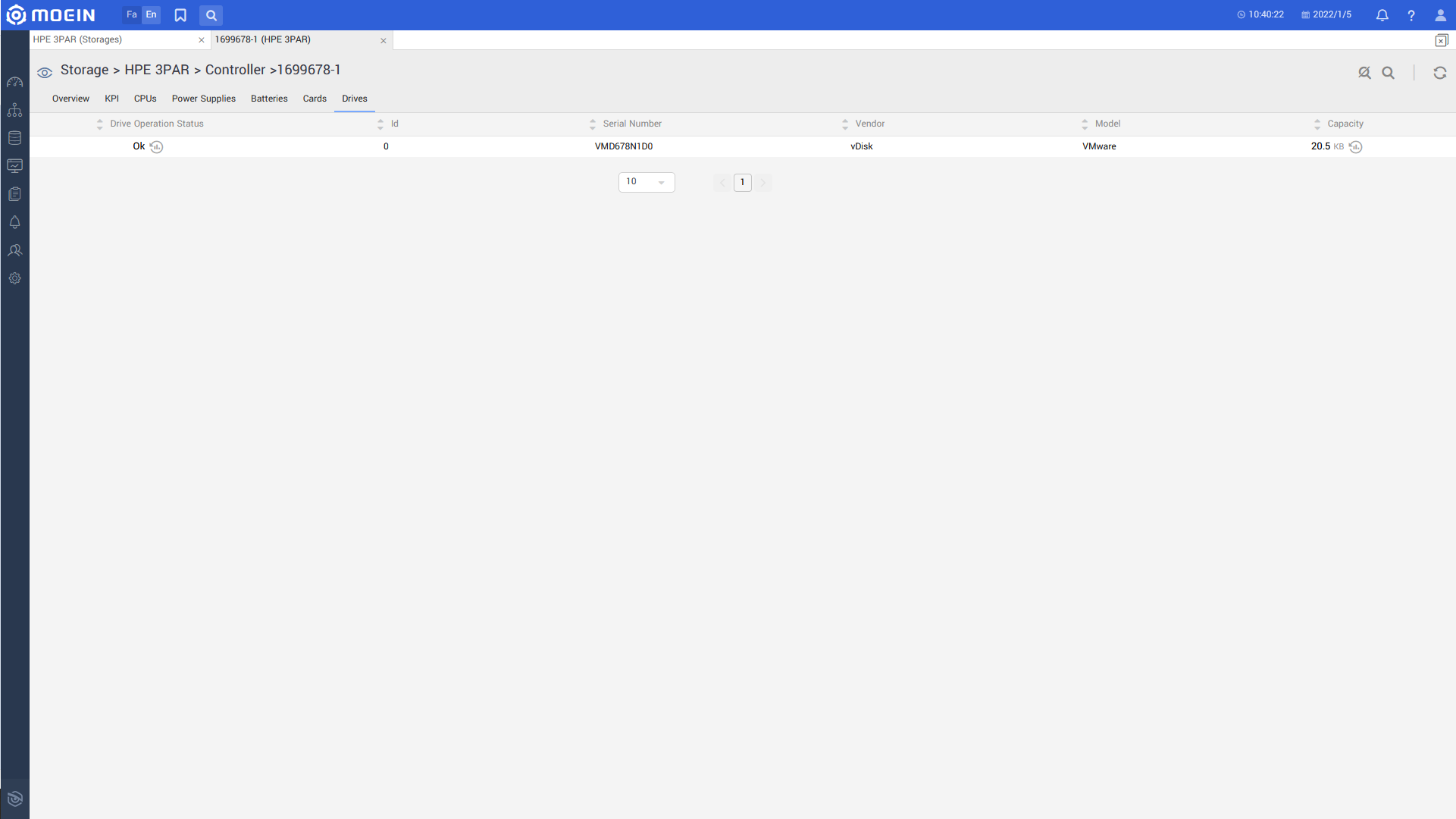

Controller Drivers KPIs:

  1. Controller ID
  2. Card Name
  3. Serial Number
  4. ID
  5. Vendor
  6. Model
  7. Operation Status
  8. Firmware Version
  9. Capacity

Hp E3 Par.controllers.view.drivers.en

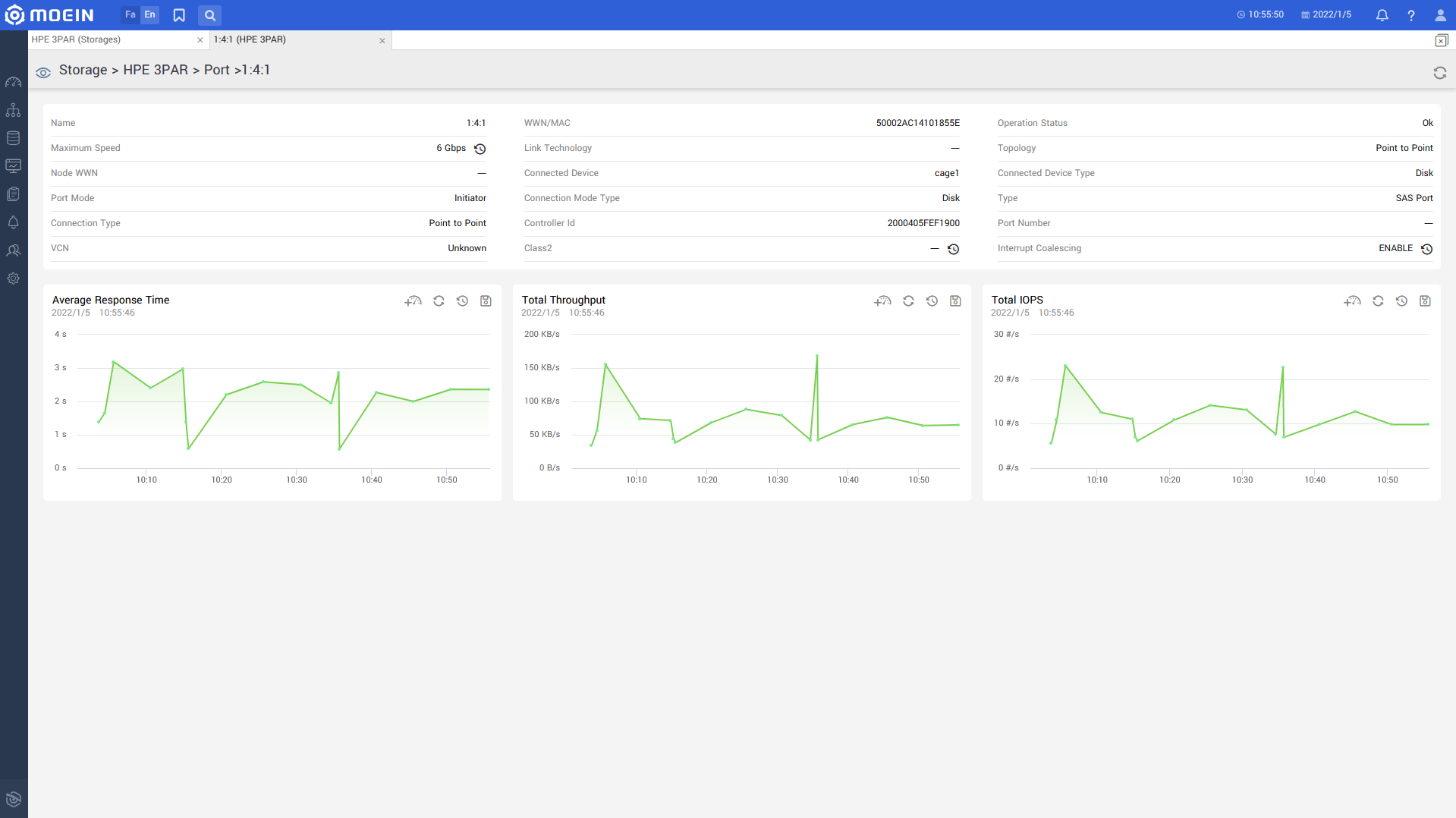

Ports KPIs:

  1. Position
  2. WWN/MAC
  3. Operation Status
  4. OtherOperationalStatus
  5. Maximum Speed
  6. Link Technology
  7. Topology
  8. Node WWN
  9. Connected Device Type
  10. Connected Device
  11. Mode Of The Port
  12. Connection Type
  13. Connection Mode
  14. Port Type
  15. Controller ID
  16. Port Number
  17. VCN
  18. Class2
  19. Interrupt Coalescing
  20. Health State
  21. Total IOs
  22. Total Data Transferred
  23. Total Data Written
  24. Total IO Elapsed Time
  25. Read IOs Count
  26. Total Read IOs Elapsed Time
  27. Total Data Reads
  28. Write IOs Count
  29. Total Write IOs Elapsed Time
  30. Total IOPS
  31. Total Throughput
  32. Write Rate
  33. Read Rate
  34. Average Response Time
  35. Average Read Response Time
  36. Average IO Read Rate
  37. Average IO Write Rate
  38. Average Write Response Time

Hp E3 Par.ports.view.en

Cage KPIs:

  1. Cage Name
  2. Serial Number
  3. ID
  4. Vendor
  5. Cage Type
  6. Type
  7. Operation Status
  8. WWN Address
  9. Number Of Disks
  10. Total FC Disk Spaces
  11. FC Disk Usage
  12. Total NL Disk Spaces
  13. NL Disk Usage
  14. Total SSD Disk Spaces
  15. SSD Disk Usage
  16. Health State

Hp E3 Par.cages.en

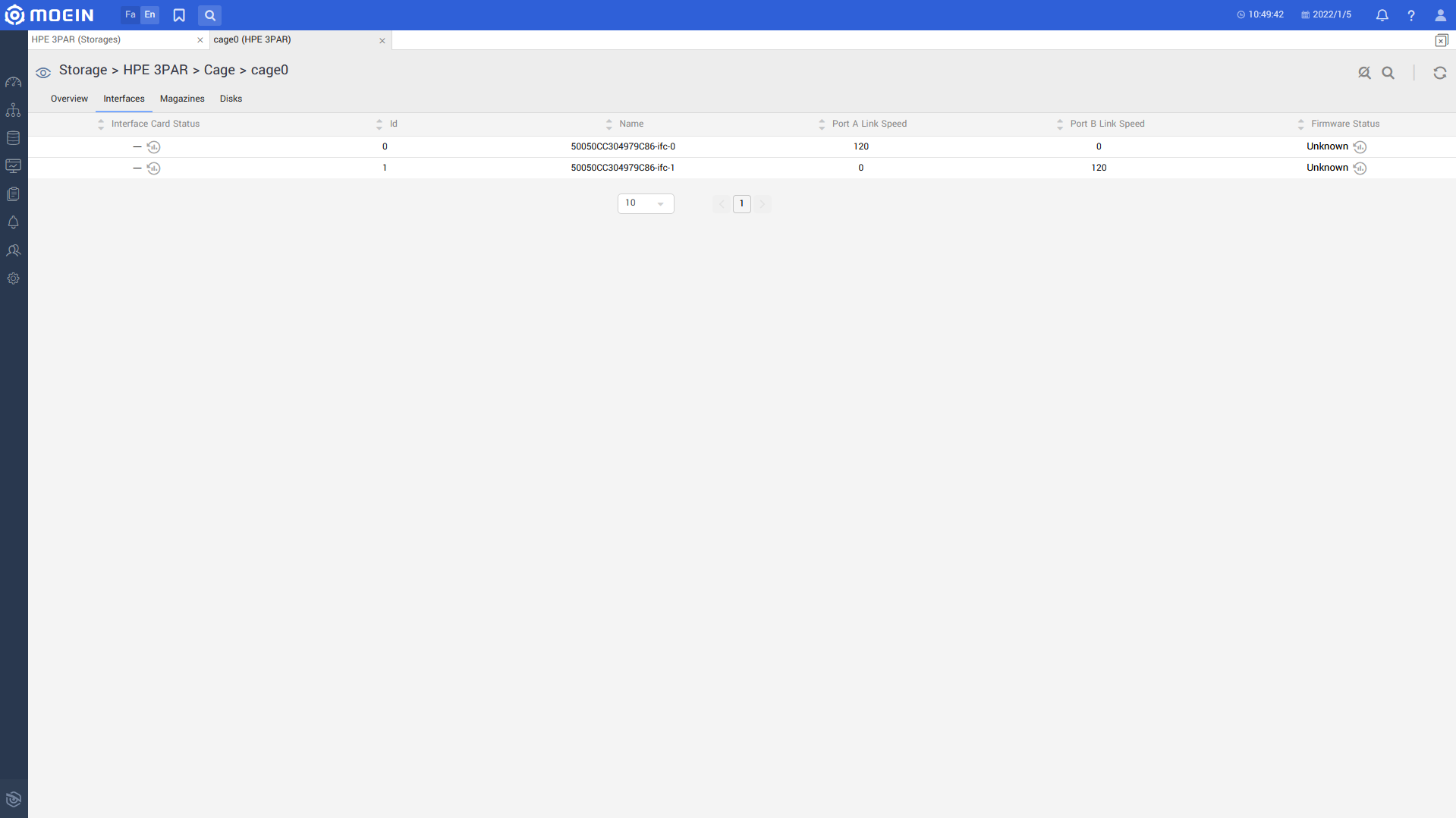

Cage Interface Cards KPIs:

  1. Serial Number
  2. ID
  3. Vendor
  4. WWN of the Loop A ports
  5. WWN of the Loop B ports
  6. WWN of the Node FC Port connected to A Loop(s)
  7. WWN of the Node FC Port connected to B Loop(s)
  8. Loop A ID
  9. Loop B ID
  10. Port A State
  11. Port B State
  12. Port A Link Speed
  13. Port B Link Speed
  14. Operation Status
  15. Firmware Status
  16. Interface Card Status

Hp E3 Par.cages.view.interface.en

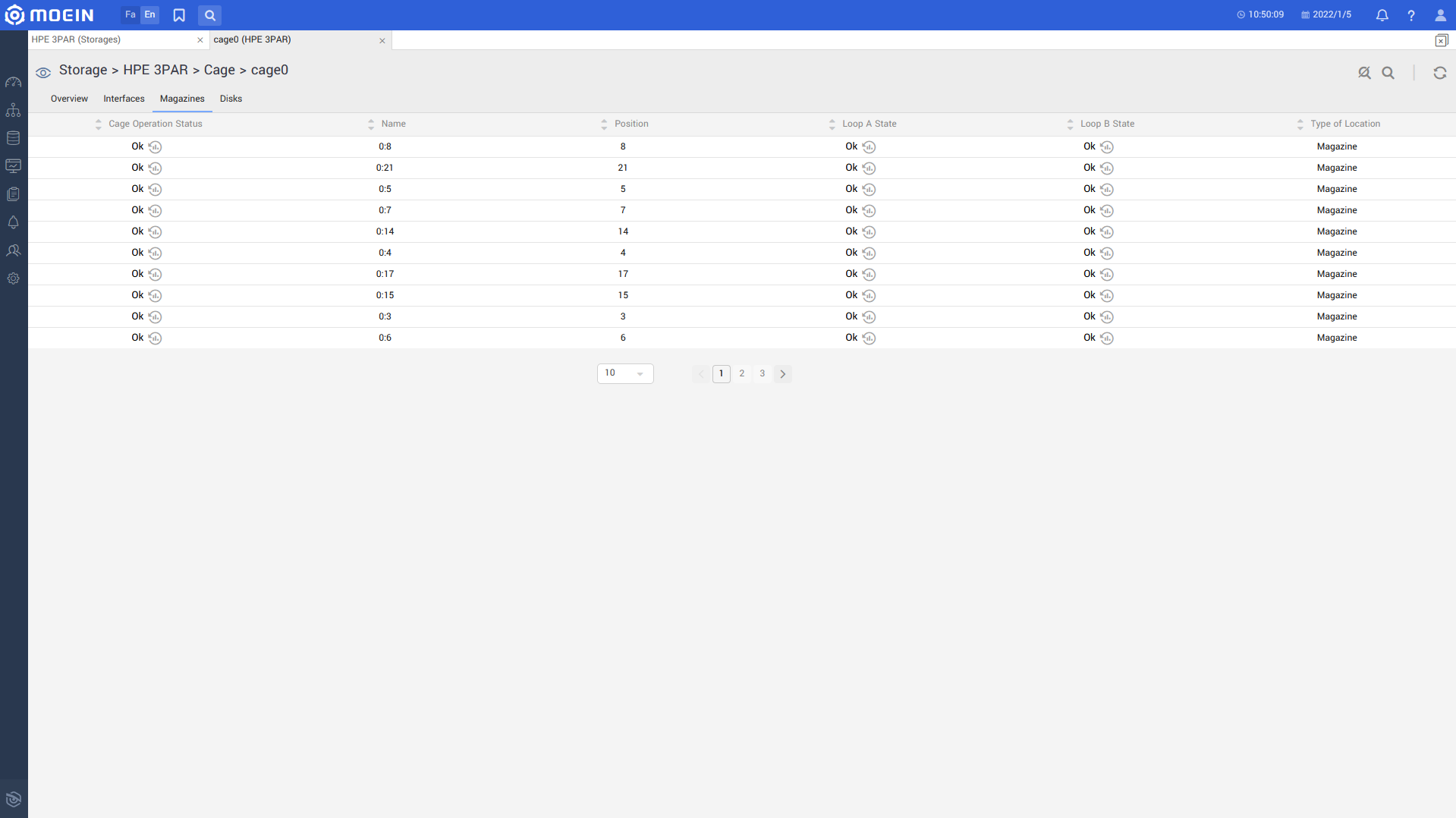

Cage Magazines KPIs:

  1. Position
  2. Operation Status
  3. Loop A State
  4. Loop B State
  5. Type of Location
  6. Supported Media Type

Hp E3 Par.cages.view.magazine.en

Cage Disks KPIS:

  1. Position
  2. WWN/Device Name
  3. Operational Status
  4. Temperature
  5. Loop A State
  6. Loop B State

Hp E3 Par.cages.view.disks.en

Cage Power Supplies KPIs:

  1. Controller ID
  2. Power Supply Device ID
  3. ID
  4. Vendor
  5. Model
  6. Enabled Status
  7. Operation Status
  8. Health Status
  9. AC Status
  10. DC Status
  11. Fan Status
  12. Battery Status

Disks Information:

  1. Vendor
  2. Model
  3. Serial Number
  4. Position
  5. Cage Type
  6. Device ID
  7. Disk Type
  8. Device Type
  9. Media Type
  10. System LED Status
  11. Disk Speed
  12. Operational Status
  13. Disk Health Status
  14. Enabled Status
  15. Total Disk Capcity
  16. Chunk Size
  17. Number Of Free Chunks
  18. Free Capacity
  19. Normal Used Size
  20. Spare Free Size
  21. Total Used
  22. Usage
  23. Initiator Port A Location
  24. Initiator Port B Location

Disks KPIs:

  1. Total IOs
  2. Total Data Transferred
  3. Total Data Wrriten
  4. Total IO Elapsed Time
  5. Read IOs Count
  6. Total Read IOs Elapsed Time
  7. Total Data Reads
  8. Write IOs Count
  9. Total Write IOs Elapsed Time
  10. Total IOPS
  11. Total Throughput
  12. Write Rate
  13. Read Rate
  14. Average Response Time
  15. Average Read Response Time
  16. Average IO Read Rate
  17. Average IO Write Rate
  18. Average Write Response Time
  19. Read Service Time
  20. Write Service Time
  21. Total Service Time
  22. Queue Length
  23. Busy Percentage

Hp E3 Par.disks.view.en

CPGs KPIs:

  1. ID
  2. Operation Status
  3. Raid Type
  4. Disk Type
  5. Allocated Capacity
  6. Used Capacity
  7. Free Capacity
  8. Capacity Usage
  9. Number Of Luns
  10. LUN Names

Hp E3 Par.cpg.en

Virtual Volume KPIs:

  1. System ID
  2. System Name
  3. Virtual Volume ID
  4. Domain
  5. Creation Date
  6. Operation Status
  7. Provision Type
  8. Volume Type
  9. Raid Type
  10. LUN Size
  11. Used Size
  12. Free Size
  13. Capacity Usage
  14. Admin Space
  15. Reserved Copy Size
  16. CPG Name
  17. WWN
  18. Mode
  19. Master Node ID
  20. Backup 1 Node ID
  21. Backup 2 Node ID
  22. Disk Health Status

Hp E3 Par.cpg.view.en

LUN KPIs:

  1. Total IOs
  2. Total Data Transferred
  3. Total Data Written
  4. Total IO Elapsed Time
  5. Total IOs Count
  6. Total Read IOs Elapsed Time
  7. Total Data Reads
  8. Write IOs Count
  9. Total Write IOs Elapsed Time
  10. Total IOPS
  11. Total Throughput
  12. Write Rate
  13. Read Rate
  14. Average Response Time
  15. Average Read Response Time
  16. Average IO Read Rate
  17. Average IO Write Rate
  18. Average Write Response Time
  19. Read Service Time
  20. Write Service Time
  21. Total Service Time
  22. Queue Length
  23. Busy Percentage
